Overview
Large plastic injection molding uses high-tonnage machines to mold large, thick, and complex parts with precision and consistency.
The procedure supports designs that require significant clamping force, shot volume, and physical mold size, ensuring defect-free, structurally sound components.
Richfields is a leading provider, offering advanced machinery and technology to deliver high-quality large plastic injection molding solutions worldwide

Large components demand precision, strength, and repeatability, which is why large plastic injection molding has become essential for modern manufacturing. Understanding the scale and capabilities of large plastic injection molding reveals how complex, oversized parts can be produced consistently and at high volumes.

Partnering with a large injection molding company in China allows companies in the USA to access advanced machinery and expertise without compromising quality or efficiency. This process supports intricate designs, reliable material performance, and streamlined production timelines. By grasping these capabilities, manufacturers can better plan projects, optimize resources, and ensure consistent outcomes from concept to finished product.

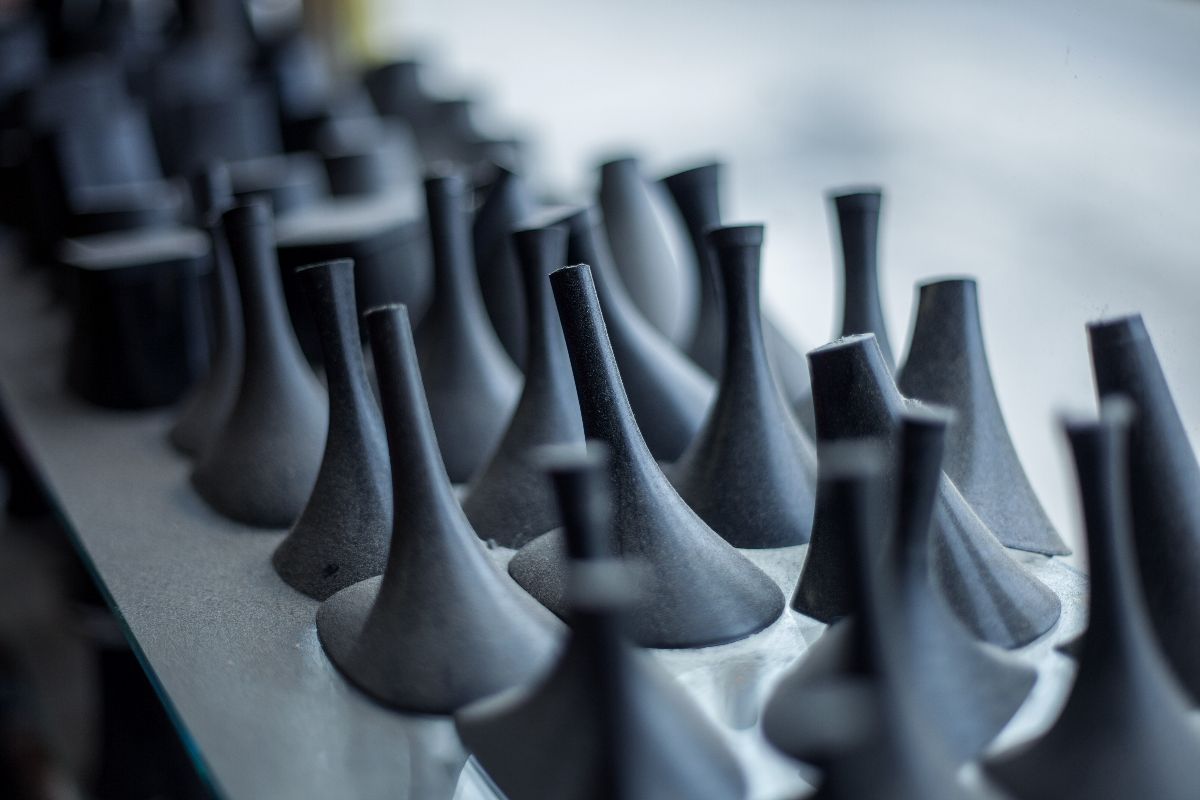

How the Scale and Capabilities of Large Plastic Injection Molding Make Complex Parts Possible

Large plastic injection molding follows the same principles as standard molding but is engineered to handle bigger, heavier, and more intricate components. Unlike conventional machines limited by smaller shot sizes and lower clamping forces, high-tonnage systems can deliver larger volumes of material with greater precision and stability. This capability allows engineers to produce thick, broad, or structurally demanding parts without warping, incomplete fills, or pressure loss.

Understanding these differences helps teams identify which designs require standard equipment and which demand large-scale molding to achieve consistent strength, accuracy, and quality. When you leverage this expanded capacity, manufacturers can reliably execute complex designs at scale.

Understanding the Scales of Large Plastic Injection Molding

This process offers a scale and strength far beyond conventional molding. It enables the production of bigger, more structurally demanding components with precision and consistency. By understanding these capabilities, teams can confidently determine whether a product fits the requirements of large-scale molding.

Clamping Force (Tonnage)

Clamping force is the pressure a molding machine applies to keep the mold closed during injection. Large injection molding machines exert significantly higher forces—often hundreds or thousands of tons—to handle the extreme pressure of molten plastic entering oversized molds.

Matching the required tonnage with your part design ensures clean, precise, and defect-free production.

Shot Volume

Shot volume refers to the amount of molten plastic a machine can inject in a single cycle. High-capacity machines provide the consistent material flow needed to fill large or thick components, preventing weak spots, weld lines, or inconsistent density.

Understanding shot volume helps ensure complete fills and more dependable final parts.

Physical Size

Physical size relates to the maximum dimensions a machine can accommodate, including mold height, width, and platen opening. Large-scale equipment can handle wide panels, long structural elements, or bulky components that standard machines cannot.

Knowing these limits allows engineers to design oversized parts confidently, with enough space for tooling, cooling channels, and ejection systems without risking costly redesigns.

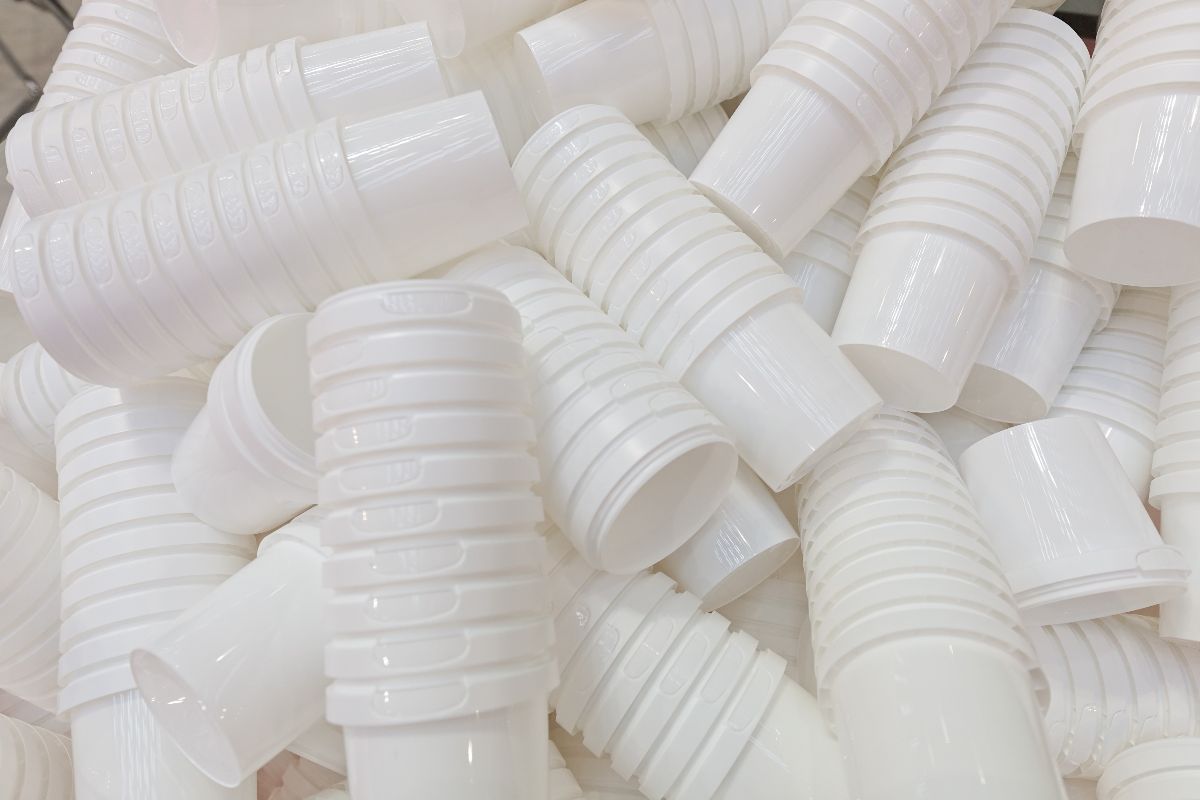

Core Capabilities of Large Plastic Injection Molding

This process provides capabilities far beyond conventional machines, allowing manufacturers to handle oversized parts, heavier molds, and complex geometries efficiently and consistently. The key capabilities include:

High Repeatability and Precision

Every molded part meets strict specifications with minimal variation, ensuring consistent quality across production runs. This is achieved through controlled injection pressures, stable clamping systems, and optimized melt flow. The result is fewer defects, accurate dimensions, and the ability to maintain tight tolerances even for large or complex components.

Typical Range: Tolerance deviations within ±0.05–0.1 mm, depending on part size and material.

Design Flexibility

Large injection molding supports intricate shapes, multi-feature components, and varied wall thicknesses without compromising structural integrity. Advanced mold design and precise machine control allow manufacturers to accommodate undercuts, complex details, and large parts efficiently.

Typical Range: Component lengths from 50 mm to over 2 meters, with wall thicknesses ranging from 1 mm to 20 mm.

Material Versatility

This method can process a wide range of polymers, including engineering plastics, high-performance thermoplastics, and recycled or bio-based resins. Adjustments in temperature, pressure, and cooling allow for different materials while maintaining durability, functionality, and consistent quality.

Typical Range: Compatible with polypropylene (PP), polyethylene (PE), polycarbonate (PC), ABS, nylon (PA), PBT, and reinforced composites; shot weights from 0.5 kg to 50 kg or more depending on part size and material.

High Efficiency and Low Cost per Part

Large-scale molding can produce multiple complex parts in a single cycle. Automation, optimized cycle times, and minimal material waste reduce production costs while boosting output.

Typical Range: Capable of producing hundreds to tens of thousands of parts per day, with cycle times from 20 seconds to several minutes depending on part complexity.

Common Applications

High-capacity molding is essential across industries where size, strength, and precision matter. Its versatility allows designers and engineers to create components that meet demanding specifications while optimizing efficiency.

Automotives: Structural and aesthetic parts like dashboards, bumpers, door panels, and engine covers, where durability and precision are critical.
Consumer Goods: High-volume household and personal items, including chairs, storage containers, kitchenware, and electronic casings, all requiring consistent quality.
Industrial Projects: Machine housings, protective casings, and storage tanks that must withstand heavy-duty conditions while maintaining exact dimensions.

Where Can You Get a Reliable Large Plastic Injection Molding Partner for Companies in the USA?

Richfields stands out as a leading provider of large plastic injection molding solutions, offering unparalleled technical capabilities to meet the demands of complex projects for companies in the USA. Our machinery delivers high clamping forces of up to 10,000 tons, handles shot volumes exceeding 25,000 cc, and produces parts measuring several meters in length.

With advanced process control systems, precise temperature regulation, and thorough mold tracking, we ensure high repeatability, tight tolerances, and consistent part quality. By combining technical expertise with extensive experience in large-scale projects, we help bring concepts to flawless production efficiently and reliably.

Key Takeaway

Gaining a comprehensive understanding of the scale and capabilities of large plastic injection molding is important for project engineers and product development managers. By knowing the limits of clamping force, shot volume, and part size, you can make great decisions that optimize manufacturability and optimize overall project efficiency.

Richfields offers world-class large plastic injection molding solutions that showcase the full scale and capabilities of high-capacity machines, precise process control, and expert engineering. Contact us today to see how we can bring your complex, oversized projects to life with consistent quality and efficiency.
